Hose Reels Black Painted Steel
$115.40 - $144.31

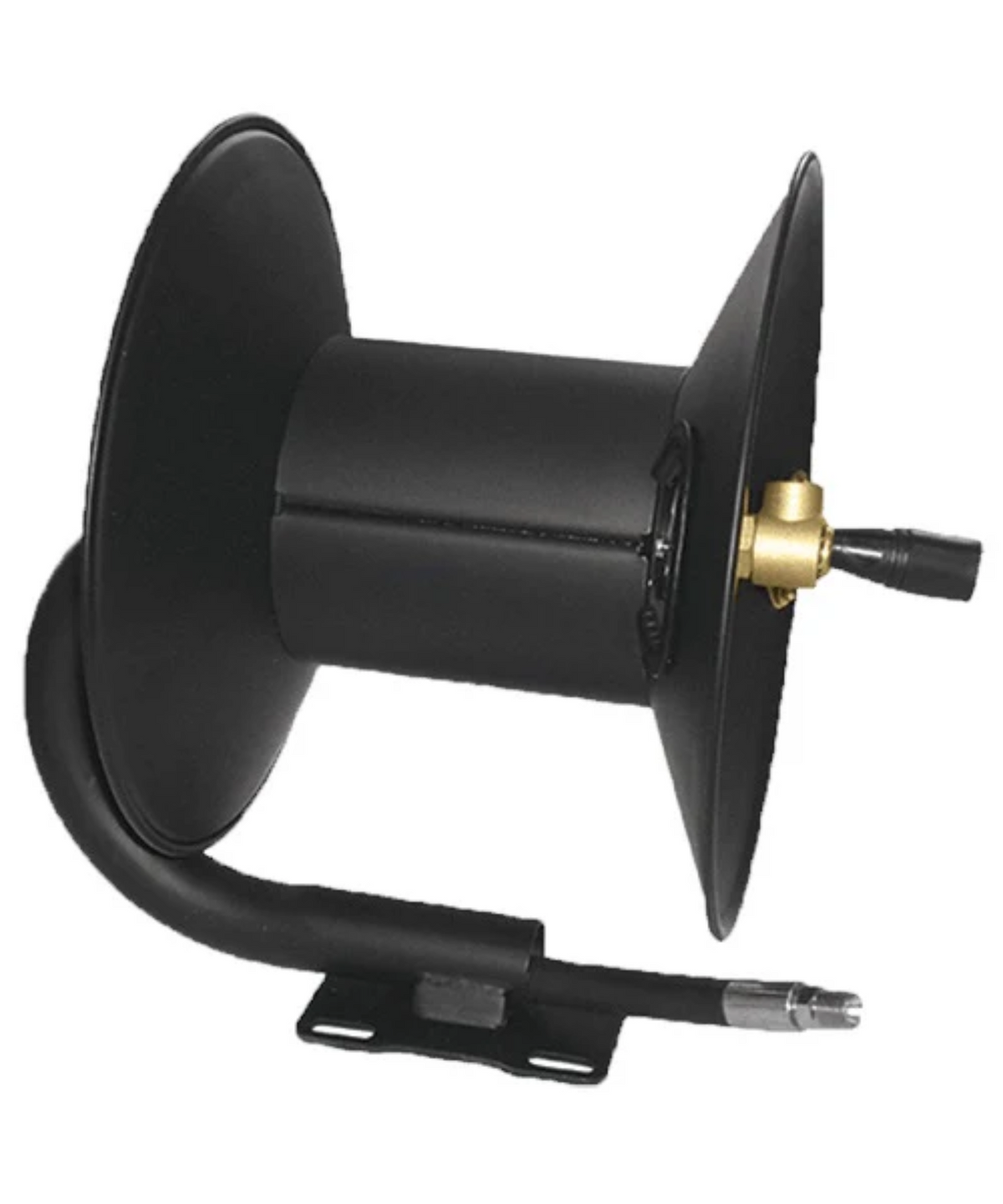

Hose Reels Black Painted Steel
Veloci Performance Products Hose Reels offer a consolidated and organized method for storing your KobraJet hose. Hardware is not included for mounting as this is specific to your setup, however, the high-grade brass swivel is recognized by many to outperform most other models in the cold water hose reel division.
- 3/8" NPTM x 3/8" NPT
- Threaded 3/8" male NPT hard-line outlet (wet line)
- Max - 4,000 PSI
- Max - 140°F Temp
- Rated for cold water use only
- 12.5" Height x 11.5" Length
| Measurement | 50' | 100' |
|---|---|---|
| Height | 12.5" | 12.5" |
| Total Width | 11" | 15" |
| Depth | 10.5" | 10.5 |
| Wall Width | 7.5" | 12" |
| Core Width | 4.375" | 8.75" |
| Core Diameter | 4.25" | 4.25" |
| Inlet | 3/8" Male NPT | 3/8" Male NPT |
| Base to Center of Core | 7.5" | 7.5" |
| Mounting Bracket | 4 holes-square - 3.375" to center | 4 holes-square - 3.375" to center |
| Hole Diameter | 0.375" Circle | 0.375" Circle |
| Pin Lock | Yes | Yes |
| Mounting Hardware | None | None |
How to Install Your MTM Hose Reel
